Nantong Sail Machinery Co., Ltd
Meet Norm DIN762:1992 edition
Suitable for continuous conveyors
Material: carbon steel
Calibrated and Proof tested grade 3 chain
Hot dip galvanized, zinc plated, natural black
WARNING: DO NOT EXCEED THE WORKING LOAD LIMITS !NOT FOR OVERHEAD LIFTING
|

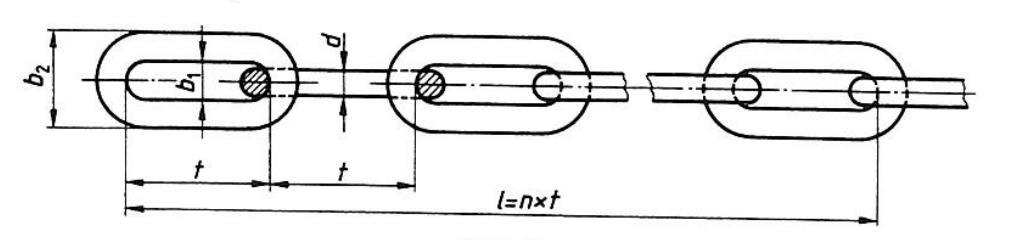

Nominal size (mm) |
Pitch (mm) |
Width (mm) |
Gauge length of 11t |
Working load (KN) Max. |
Proof Load (KN) Min. |
Breaking load (KN) Min. |
Weight | |||
| d | tolerance | t | tolerance |
min. inside b1 |
max. outisde b2 |
kg/m |
||||
|
10 |
±0.4 | 50 | +0.8/-0.4 | 14.0 | 36.0 | 550(+3.9/-2.2) | 10 | 25 | 50 | 1.8 |
| 13 | ±0.5 | 65 | +1.0/-0.5 | 18.2 | 46.8 | 715(+5.0/-2.9) | 16 | 40 | 80 | 3.1 |
| 16 | ±0.6 | 80 | +1.3/-0.6 | 22.4 | 57.6 | 880(+6.2/-3.5) | 25 | 63 | 125 | 4.7 |
| 18 | ±0.9 | 90 | +1.4/-0.7 | 25.0 | 65.0 | 990(+6.9/-4.0) | 32 | 80 | 160 | 6.0 |
| 20 | ±1 | 100 | +1.6/-0.8 | 28.0 | 72.0 | 1100(+7.7/-4.4) | 40 | 100 | 200 | 7.4 |
