Nantong Sail Machinery Co., Ltd
Meet Norm DIN766 :1986 edition
Suitable for windlass
Material: carbon steel
Calibrated and Proof tested
Hot dip galvanized, zinc plated, natural black
WARNING: DO NOT EXCEED THE WORKING LOAD LIMITS !NOT FOR OVERHEAD LIFTING
Working load
max.
Proof load
min.
Breaking load
min.

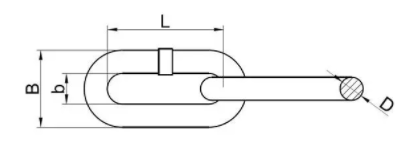

Chain size
Pitch
Width
Length per 11links
D
tolerance
L
tolerance
min. b
max. B
11L
tolerance
mm
mm
mm
mm
kg
kn
kn
4
±0.2
16
+0.3
-0.2
4.8
13.6
176
+0.8
-0.4
200
5
8
5
±0.2
18.5
+0.4
-0.2
6.0
17.0
204
+0.9
-0.5
320
8
12.5
6
±0.2
18.5
+0.4
-0.2
7.2
20.4
204
+0.9
-0.5
400
10
16
7
±0.3
22
+0.4
-0.2
8.4
23.8
242
+1.1
-0.5
630
16
25
8
±0.3
24
+0.4
-0.2
9.6
27.2
262
+1.2
-0.6
800
20
32
9
±0.4
27
+0.5
-0.3
10.8
30.6
297
+1.3
-0.7
1000
25
40
10
±0.4
28
+0.5
-0.3
12.0
36.0
308
+1.4
-0.7
1250
32
50
11
±0.4
31
+0.5
-0.3
13.2
40.0
341
+1.5
-0.8
1600
40
63
13
±0.5
36
+0.6
-0.3
15.6
47.0
396
+1.7
-0.9
2000
50
80
14
±0.6
41
+0.7
-0.4
16.8
50.0
451
+2.0
-1.0
2500
63
100
16
±0.6
45
+0.8
-0.4
19.2
58.0
495
+2.2
-1.1
3200
80
125
