Nantong Sail Machinery Co., Ltd
Meet Norm DIN764 :1992 edition
Material: carbon steel
Proof tested and calibrated grade 3 chain
Hot dip galvanized, zinc plated, natural black
For continuous conveyors, use with chain wheels or rollers, the chain must be calibrated
WARNING: DO NOT EXCEED THE WORKING LOAD LIMITS ! NOT FOR OVERHEAD LIFTING

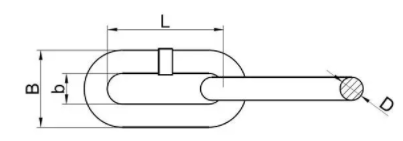

Nominal size
(mm)
Pitch
(mm)
Width
(mm)
Gauge length
(mm)
Inside b
min.
Outside B
max.
Tolerance A
10
D
Tolerance
L
Tolerance
11L
Tolerance B
±0.4
35
+0.6
-0.3
14
36
385
+1.7
-0.9
+2.7
-1.5
13
±0.5
45
+0.7
-0.4
18
47
495
+2.2
-1.1
+3.5
-2.0
16
±0.6
56
+0.9
-0.5
22
58
616
+2.8
-1.4
+4.3
-2.5
18
±0.9
63
+1.0
-0.5
24
65
693
+3.1
-1.6
+4.9
-2.8
20
±1.0
70
+1.1
-0.6
27
72
770
+3.5
-1.8
+5.4
-3.2
