Australian Standard Long Link Chain

Release time:2021-03-18  Browse times:896


The Australian Standard short link chain is manufactured from low grade carbon steel and available in a variety of link dimensions. Suitable for a wide range of applications across the manufacturing, marine and agricultural industries, this versatile range of chain is proof tested to at least twice the maximum load recommended for normal use.

Material: low carbon steel

Self-color finish, zinc plated finish, hot dip galvanized finish

WARNING: DO NOT EXCEED THE WORKING LOAD LIMITS !NOT FOR OVERHEAD LIFTING


Chain

size

Working

load

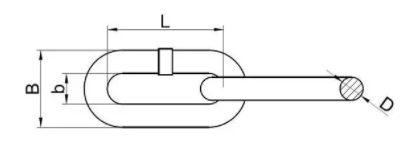

Link dimension Length per 100kg
D D L B

SC

ZINC

HDG
mm ton mm
meters
3 0.05 3.15 22.1 15.7 555 526
4 0.09 4 25.4 18.6 345 323
5 0.19 5 29.3 21.8 217 206
6 0.32 6.3 34.5 26.1 135 128
8 0.53 8 41.2 31.9 82.2 78.1
10 0.83 10 49 38.7 52.9 50.2
