Nantong Sail Machinery Co., Ltd
Conforms to the latest revision of Australian Standard 2321
Suitable for windlass
Material: low carbon steel
Embossed with “L”
Calibrated and Proof tested
Design factor 4 : 1
Hot dip galvanized finish
WARNING: DO NOT EXCEED THE WORKING LOAD LIMITS !NOT FOR OVERHEAD LIFTING
Chain
size
External
width
Internal
width
Working
load
Proof
load
Breaking
load

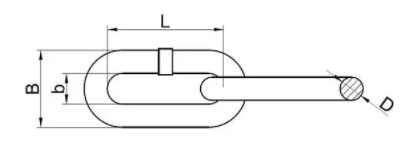

Pitch
D
L
max. B
min. b
max.
min.
min.
mm
mm
mm
mm
ton
kn
kn
6
18
22.2
7.8
0.36
7.1
17.8
7
21
25.9
9.1
0.49
9.7
24.2
8
24
29.6
10.4
0.65
12.7
31.7
10
30
37.0
13.0
1.00
19.8
49.5
13
39
48.1
16.9
1.70
33.5
83.7
16
48
59.2
20.8
2.58
50.7
127
18
54
66.6
23.4
3.28
64.2
161
19
57
70.3
24.7
3.67
71.9
180
20
60
74.0
26.0
4.03
79.2
198
