The ordinary Chain is manufactured from low grade carbon steel and available in a variety of link dimensions.
Suitable for a wide range of applications across the manufacturing, marine and agricultural industries.
Ordinary chain is supplied untested and unstamped for the most economical solution to a variety of general purpose uses.
Material: low carbon steel
Self-color finish, zinc plated finish, hot dip galvanized finish
WARNING: DO NOT EXCEED THE WORKING LOAD LIMITS !NOT FOR OVERHEAD LIFTING
|
Dimension |
Proof load |
Breaking load |
Net weight per 200ft |
||||

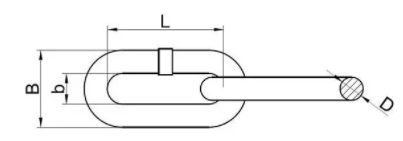

| D | L | B |
sc zinc |
HDG | |||
| in | mm | mm | mm | kg | kg | kg | kg |
| 1/8 | 3.2 | 16 | 12 | 200 | 400 | 11.4 | 11.74 |
| 5/32 | 4.0 | 18.5 | 14.5 | 300 | 600 | 18.6 | 19 |
| 3/16 | 4.7 | 19 | 17 | 400 | 800 | 26.2 | 27 |
| 7/32 | 5.5 | 20 | 19 | 550 | 1100 | 36.8 | 38 |
|
1/4 |
6.35 | 22 | 21 | 750 | 1500 | 50 | 51.5 |
| 5/16 | 7.94 | 26.5 | 27.2 | 1200 | 2400 | 80 | 82.4 |
| 3/8 | 9.5 | 30 | 32 | 1700 | 3400 | 122 | 125.7 |
|
7/16 |
11.11 | 34 | 36 | 2300 | 4600 | 164 | 169 |
|
1/2 |
12.7 | 39 | 43 | 3000 | 6000 | 210 | 216 |
|
5/8 |
15.8 | 45 | 53 | 4700 | 9400 | 334 | 344 |
| 3/4 | 19 | 55 | 63 | 6800 | 13600 | 485 | 499 |
|
7/8 |
22.2 | 64 | 74 | 9250 | 18500 | 656 | 675 |
| 1 | 25.4 | 73 | 84 | 12150 | 24300 | 870 | 896 |
