Nantong Sail Machinery Co., Ltd
Short link chain for lifting purposes
Conforms to the mechanical properties of European Standard EN818-2
Produced from the highest quality alloy steel
Embossed with “G80” and traceability code
Quenched and tempered, proof tested
In accordance with 4-to-1 design factor required by EN818-2 standard.
Black electrophoresis finish
WARNING: DO NOT EXCEED THE WORKING LOAD LIMITS !
Nominal
size
Working load
max.
Proof load
min.
Breaking load
min.
10.0

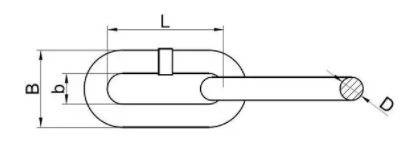

Pitch
External width
Internal with
D
L
B
b
mm
mm
mm
mm
ton
kn
kn
4
12
13.2
5.2
0.5
12.6
20.1
5
15
16.5
6.5
0.8
19.6
31.4
6
18
21.0
9.0
1.1
28.3
45.2
7
21
24.0
1.5
38.5
61.6
8
24
27.5
11.5
2.0
50.3
80.4
10
30
34.5
14.5
3.2
78.5
126
13
39
45.0
19.0
5.3
133
212
16
48
55.5
23.5
8.0
201
322
18
54
61.0
25.0
10.0
254
407
19
57
64.0
26.0
11.2
284
454
20
60
68.0
28.0
12.5
314
503
22
66
73.5
29.5
15.0
380
608
26
78
89.0
37.0
21.2
531
849
32
96
112
48.0
31.5
804
1290
