Nantong Sail Machinery Co., Ltd
Meet Norm DIN5685-2:2003 edition
Equals old edition DIN5685A
For general use where compactness and extra flexibility are desired.
It is generally used on home applications and agricultural implements
Material: low carbon steel
Self-color finish, zinc plated finish, hot dip galvanized finish
WARNING: DO NOT EXCEED THE WORKING LOAD LIMITS ! NOT FOR OVERHEAD LIFTING
Working load
max.
Weight
kg/100m

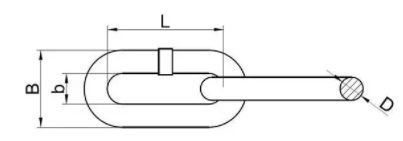

Chain size
Pitch
Width
D
tolerance
L
tolerance
min. b
mm
mm
mm
kg
2.0
±0.1
12
±0.6
3.5
20
7
2.5
±0.1
14
±0.7
4.5
30
11
3.0
±0.2
16
±0.8
5.5
40
17
3.5
±0.2
18
±0.9
6
60
23
4.0
±0.2
19
±1.0
7
80
30
5.0
±0.3
21
±1.1
9
125
50
6.0
±0.3
24
±1.2
11
160
73
7.0
±0.4
28
±1.4
12
220
99
8.0
±0.4
32
±1.6
14
320
130
10
±0.5
40
±2.0
18
500
200
13
±0.7
52
±2.6
23
800
340
